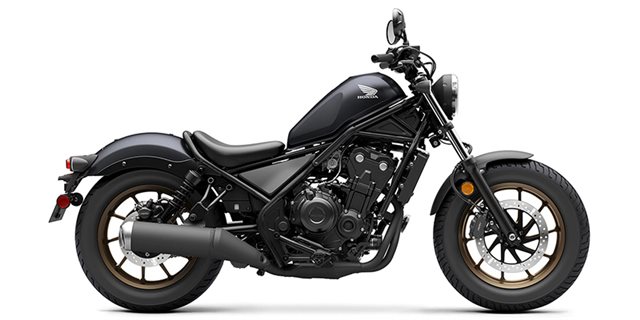

2023 Honda Rebel 500

Stock #H602156
MSRP: $6,949 USD
Check Availability
Hi, my name is and I'm interested in this 2023 Honda Rebel 500 . I'm in the area and you can reach me at or by phone at
  • Status:
    New
  • Vehicle:
    2023 Honda Rebel 500
  • VIN:
    MLHPC5618P5602156
  • Model Number:
    CMX500A2P
  • Color:
    Gray
  • Stock Number:
    H602156
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    11.7
  • Front Brake Diameter (mm):
    296
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    9.4
  • Rear Brake Diameter (mm):
    240
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    2.64
  • Bore (mm):
    67
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.7
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    471
  • Displacement (ci):
    28.7
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    34
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.63
  • Stroke (mm):
    66.8
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Foot Peg Location:
    Driver
  • Frame:
    Aluminum / Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    27.2
  • Seat Height (mm):
    690.9
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.6
  • Front Suspension Size (mm):
    41
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    5.5
  • Front Travel (mm):
    139.7
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    3.7
  • Rear Travel (mm):
    94

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    3
  • Fuel Capacity (l):
    11.2
  • Ground Clearance (in):
    5.4
  • Ground Clearance (mm):
    137.2
  • Height (in):
    42.9
  • Height (mm):
    1089.7
  • Length (ft):
    7.18
  • Length (ft/ft):
    7
  • Length (ft/in):
    2.2
  • Length (in):
    86.2
  • Length (mm):
    2189.5
  • Wet Weight (kg):
    185.1
  • Wet Weight (lbs):
    408
  • Wheelbase (in):
    58.7
  • Wheelbase (mm):
    1491
  • Width (in):
    32.3
  • Width (mm):
    820.4

TRANSMISSION

  • Gear Ratio (1):
    3.29
  • Gear Ratio (2):
    2.11
  • Gear Ratio (3):
    1.6
  • Gear Ratio (4):
    1.3
  • Gear Ratio (5):
    1.15
  • Gear Ratio (6):
    1.04
  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® 130/90-16 67H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    16
  • Rear Tire (Full Spec):
    Dunlop® 150/80-16 71H
  • Rear Tire Aspect Ratio:
    80
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    150
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
