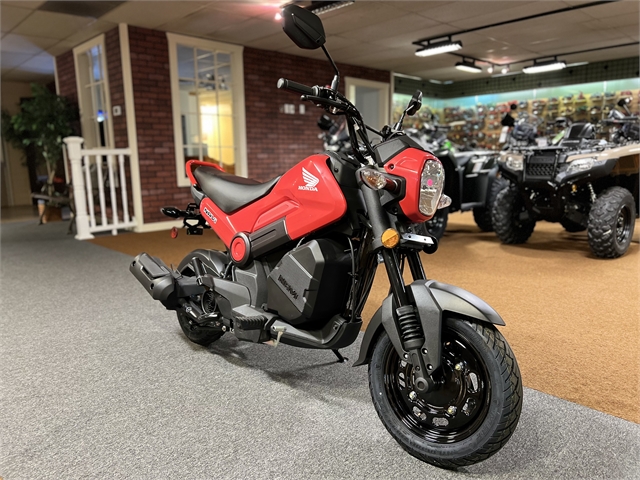

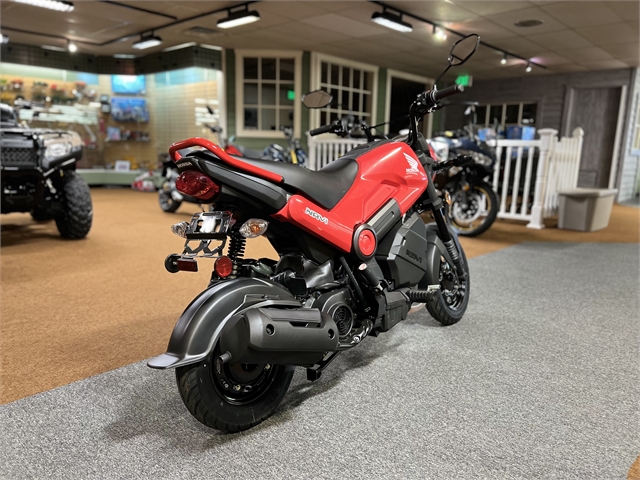

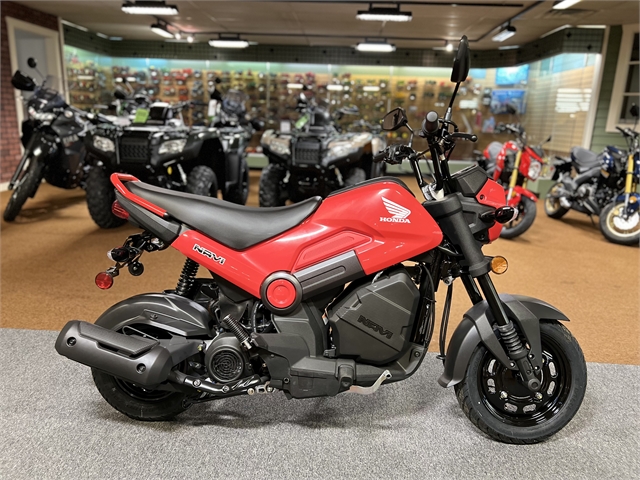

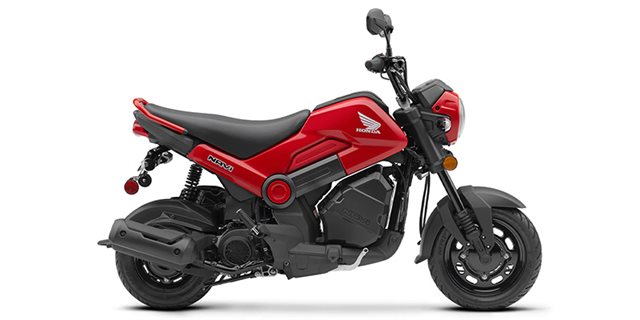

2023 Honda Navi

Stock #H100151
MSRP: $1,807 USD
Get More Info Hi, my name is and I'm interested in this 2023 Honda Navi Base . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2023 Honda Navi
  • VIN:
    3H1JK0705PD100151
  • Model Number:
    NVA110BP
  • Color:
    Red
  • Stock Number:
    H100151
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    3.7
  • Front Brake Diameter (mm):
    130
  • Front Brake Type:
    Drum
  • Rear Brake Diameter (in):
    3.7
  • Rear Brake Diameter (mm):
    130
  • Rear Brake Type:
    Drum

ENGINE

  • Bore (in):
    2.17
  • Bore (mm):
    55
  • CAN Liters Per Kilometer (Combined):
    2.1
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    16
  • Carburetor:
    Yes
  • Compression Ratio:
    9.5
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    109.2
  • Displacement (ci):
    6.7
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric / Kick
  • Stroke (in):
    2.19
  • Stroke (mm):
    55.6
  • US Miles Per Gallon (Combined):
    110
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Belt Guard:
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Passenger
  • Fork Guards:
    Yes
  • Frame:
    Aluminum / Steel
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    30.1
  • Seat Height (mm):
    764.5
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.1
  • Front Suspension Size (mm):
    26.8
  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    3.9
  • Front Travel (mm):
    99
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Type:
    Single Sided Swing Arm
  • Rear Travel (in):
    2.76
  • Rear Travel (mm):
    70

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    0.9
  • Fuel Capacity (l):
    3.4
  • Ground Clearance (in):
    6.1
  • Ground Clearance (mm):
    155
  • Height (in):
    41.1
  • Height (mm):
    1044
  • Length (ft):
    5.93
  • Length (ft/ft):
    5
  • Length (ft/in):
    11.2
  • Length (in):
    71.2
  • Length (mm):
    1808.5
  • Wet Weight (kg):
    106
  • Wet Weight (lbs):
    234
  • Wheelbase (in):
    50.6
  • Wheelbase (mm):
    1285.2
  • Width (in):
    29.1
  • Width (mm):
    739

TRANSMISSION

  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    V-Matic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    MRF Zapper
  • Front Tire Aspect Ratio:
    90
  • Front Tire Width:
    90
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    MRF Zapper
  • Rear Tire Aspect Ratio:
    100
  • Rear Tire Width:
    90
  • Rear Wheel Diameter:
    10
  • Tire Brand:
    MRF
  • Wheels Composition:
    Steel
