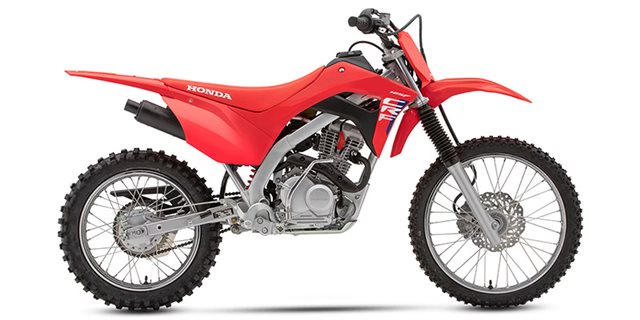

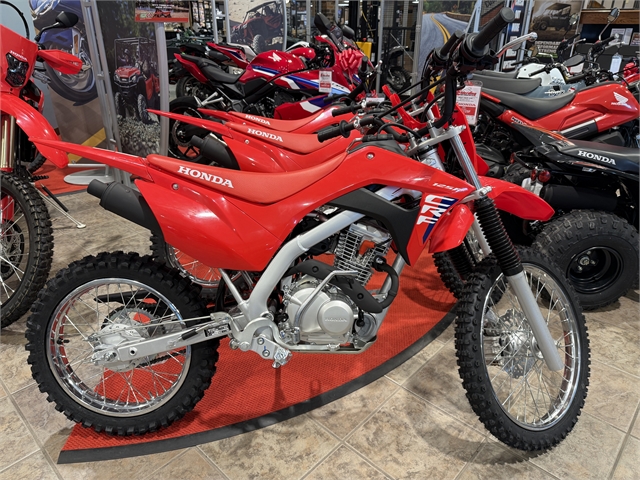

2025 Honda CRF125F (Big Wheel)

Stock #H202856
MSRP: $3,899 USD

262 people have recently viewed it.
Get More Info Hi, my name is and I'm interested in this 2025 Honda CRF 125F (Big Wheel) . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2025 Honda CRF125F (Big Wheel)
  • VIN:
    LALJE0352S3202856
  • Model Number:
    CRF125FBS
  • Color:
    Red
  • Stock Number:
    H202856
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    8.7
  • Front Brake Diameter (mm):
    220
  • Front Brake Type:
    Disc
  • Rear Brake Diameter (in):
    3.7
  • Rear Brake Diameter (mm):
    95
  • Rear Brake Type:
    Drum

ENGINE

  • Bore (in):
    2.06
  • Bore (mm):
    52.4
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.0
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    124.9
  • Displacement (ci):
    7.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    22
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric / Kick
  • Stroke (in):
    2.28
  • Stroke (mm):
    57.9
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Chain Guard:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    30.9
  • Seat Height (mm):
    784.9
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.2
  • Front Suspension Size (mm):
    31
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    6.7
  • Front Travel (mm):
    170.2
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Brand Name:
    Pro Link®
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    6.6
  • Rear Travel (mm):
    167.6

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    1
  • Fuel Capacity (l):
    3.8
  • Ground Clearance (in):
    10.3
  • Ground Clearance (mm):
    261.6
  • Height (in):
    42.1
  • Height (mm):
    1069.3
  • Length (ft):
    6.09
  • Length (ft/ft):
    6
  • Length (ft/in):
    1.1
  • Length (in):
    73.1
  • Length (mm):
    1856.7
  • Wet Weight (kg):
    90.3
  • Wet Weight (lbs):
    199
  • Wheelbase (in):
    49.4
  • Wheelbase (mm):
    1254.8
  • Width (in):
    30.3
  • Width (mm):
    769.6

TRANSMISSION

  • Number Of Speeds:
    4
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    CST® 70/100-19
  • Front Tire Aspect Ratio:
    100
  • Front Tire Width:
    70
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    CST® 90/100-16
  • Rear Tire Aspect Ratio:
    100
  • Rear Tire Width:
    90
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    CST®
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Steel
