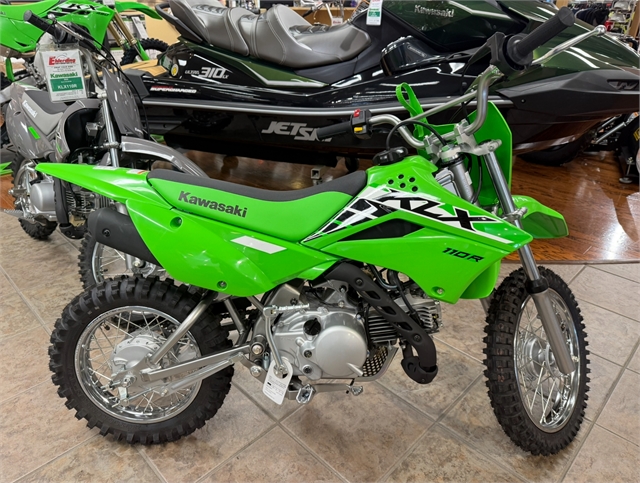

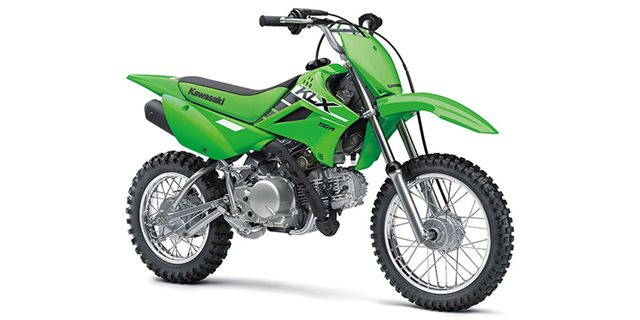

2025 Kawasaki KLX110R

Stock #KP01046
MSRP: $2,899 USD

196 people have recently viewed it.
Get More Info Hi, my name is and I'm interested in this 2025 Kawasaki KLX 110R . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2025 Kawasaki KLX110R
  • VIN:
    MH4LXSC16SJP01046
  • Model Number:
    KLX110CSFNN
  • Color:
    Lime Green
  • Stock Number:
    KP01046
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    3.5
  • Front Brake Diameter (mm):
    90
  • Front Brake Type:
    Drum
  • Rear Brake Diameter (in):
    4.3
  • Rear Brake Diameter (mm):
    110
  • Rear Brake Type:
    Drum

ENGINE

  • Bore (in):
    2.09
  • Bore (mm):
    53
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    18
  • Carburetor:
    Yes
  • Compression Ratio:
    9.5
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    112
  • Displacement (ci):
    6.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Speed Governor:
    Yes
  • Starter:
    Electric / Kick
  • Stroke (in):
    1.99
  • Stroke (mm):
    50.6
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver
  • Frame:
    Steel
  • Stand Type:
    Kick

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    26.8
  • Seat Height (mm):
    680.7
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.2
  • Front Suspension Size (mm):
    30
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    4.3
  • Front Travel (mm):
    109.2
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    4.3
  • Rear Travel (mm):
    109.2

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    1
  • Fuel Capacity (l):
    3.8
  • Ground Clearance (in):
    8.5
  • Ground Clearance (mm):
    215.9
  • Height (in):
    37.6
  • Height (mm):
    955
  • Length (ft):
    5.12
  • Length (ft/ft):
    5
  • Length (ft/in):
    1.4
  • Length (in):
    61.4
  • Length (mm):
    1559.6
  • Wet Weight (kg):
    76
  • Wet Weight (lbs):
    167.5
  • Wheelbase (in):
    42.3
  • Wheelbase (mm):
    1074.4
  • Width (in):
    25.6
  • Width (mm):
    650.2

TRANSMISSION

  • Number Of Speeds:
    4
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    2.5 x 14
  • Front Wheel Diameter:
    14
  • Front Wheel Width (in):
    2
  • Rear Tire (Full Spec):
    3.0 x 12
  • Rear Wheel Diameter:
    12
  • Rear Wheel Width (in):
    1.6
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Steel
