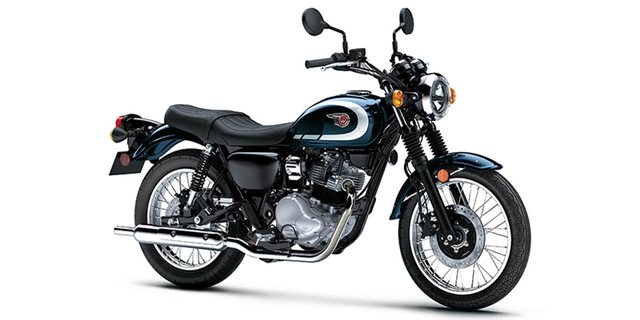

2025 Kawasaki W230 ABS

Stock #KA07814
MSRP: $5,599 USD

278 people have recently viewed it.
Get More Info Hi, my name is and I'm interested in this 2025 Kawasaki W 230 ABS . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2025 Kawasaki W230 ABS
  • VIN:
    ML5BJJA15SDA07814
  • Model Number:
    BJ230ASFAL
  • Color:
    Metallic Ocean Blue / Ebony
  • Stock Number:
    KA07814
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    10.4
  • Front Brake Diameter (mm):
    265
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    2.64
  • Bore (mm):
    67
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.0
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    233
  • Displacement (ci):
    14.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    32
  • Fuel Injector:
    Yes
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.6
  • Stroke (mm):
    66
  • Torque (Ft Lbs):
    14
  • Torque (Nm):
    19
  • Torque RPM:
    5800
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Foot Peg Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Light
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

PAINT & FINISH

  • Metallic:
    Yes

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    29.3
  • Seat Height (mm):
    744.2
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.5
  • Front Suspension Size (mm):
    37
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    4.6
  • Front Travel (mm):
    116.8
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    3.7
  • Rear Travel (mm):
    94

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    133
  • Dry Weight (lbs):
    293.2
  • Engine Displacement to Weight (cc):
    0.79
  • Fuel Capacity (gal):
    3.1
  • Fuel Capacity (l):
    11.7
  • Ground Clearance (in):
    5.9
  • Ground Clearance (mm):
    149.9
  • Height (in):
    42.9
  • Height (mm):
    1089.7
  • Length (ft):
    6.97
  • Length (ft/ft):
    6
  • Length (ft/in):
    11.6
  • Length (in):
    83.6
  • Length (mm):
    2123.4
  • Wet Weight (kg):
    143
  • Wet Weight (lbs):
    315.2
  • Wheelbase (in):
    55.7
  • Wheelbase (mm):
    1414.8
  • Width (in):
    31.4
  • Width (mm):
    797.6

TRANSMISSION

  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    90/90-18 (51S)
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    S
  • Front Tire Width:
    90
  • Front Wheel Diameter:
    18
  • Front Wheel Width (in):
    2.15
  • Rear Tire (Full Spec):
    110/90-17 (60S)
  • Rear Tire Aspect Ratio:
    90
  • Rear Tire Speed Rating:
    S
  • Rear Tire Width:
    110
  • Rear Wheel Diameter:
    17
  • Rear Wheel Width (in):
    4.5
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Steel
