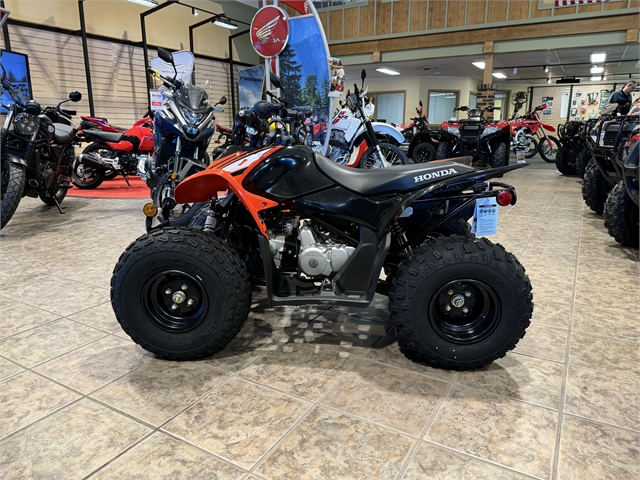

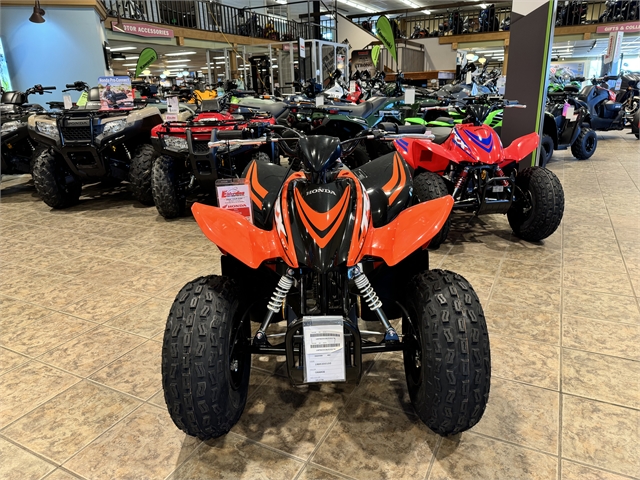

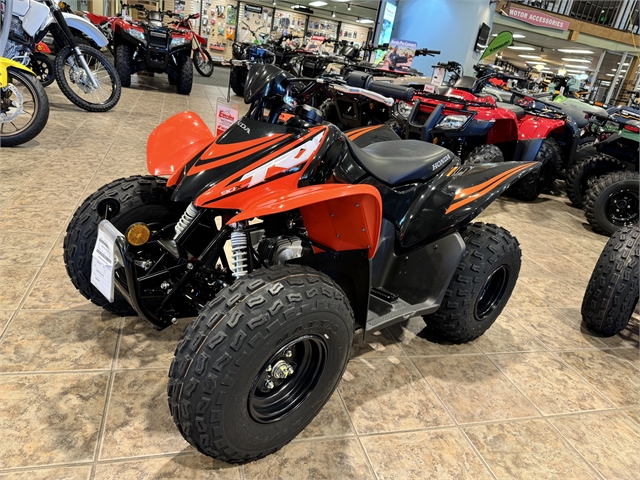

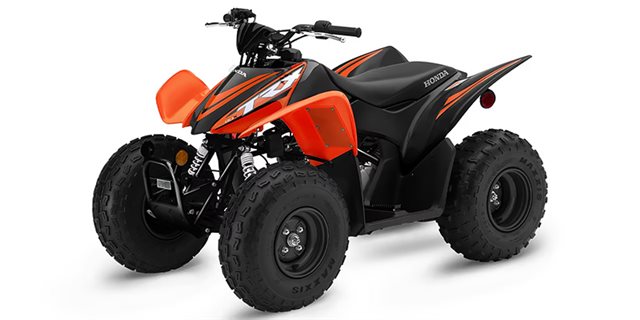

2024 Honda TRX90X

Our Treat - Save $300.00 Now!

Stock #H102278
MSRP: $3,449 USD
Discount: $300
Your Price: $3,149 USD

42 people have recently viewed it.
Get More Info Hi, my name is and I'm interested in this 2024 Honda TRX 90X - Our Treat - Save $300.00 Now! . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2024 Honda TRX90X
  • VIN:
    1HFTE5503RJ102278DUP
  • Model Number:
    TRX90XR
  • Color:
    Solstice Orange
  • Stock Number:
    H102278
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    4.3
  • Front Brake Diameter (mm):
    110
  • Front Brake Type:
    Dual Sealed Drum
  • Rear Brake Diameter (in):
    5.5
  • Rear Brake Diameter (mm):
    140
  • Rear Brake Type:
    Sealed Drum

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    1.85
  • Bore (mm):
    47
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    15
  • Carburetor:
    Yes
  • Compression Ratio:
    9.2
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    86
  • Displacement (ci):
    5.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    1.95
  • Stroke (mm):
    49.5
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Foot Peg Location:
    Driver
  • Frame:
    Steel

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    26
  • Seat Height (mm):
    660.4
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Suspension Type:
    Independent
  • Front Travel (in):
    2.6
  • Front Travel (mm):
    66
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    2.6
  • Rear Travel (mm):
    66

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    1.7
  • Fuel Capacity (l):
    6.4
  • Fuel Capacity Reserve (gal):
    0.3
  • Fuel Capacity Reserve (l):
    1.1
  • Ground Clearance (in):
    3.9
  • Ground Clearance (mm):
    99.1
  • Height (in):
    36.5
  • Height (mm):
    927.1
  • Length (ft):
    4.88
  • Length (ft/ft):
    4
  • Length (ft/in):
    10.6
  • Length (in):
    58.6
  • Length (mm):
    1488.4
  • Turning Radius (ft):
    8.3
  • Wet Weight (kg):
    118.8
  • Wet Weight (lbs):
    262
  • Wheelbase (in):
    38.7
  • Wheelbase (mm):
    983
  • Width (in):
    35.2
  • Width (mm):
    894.1

TRANSMISSION

  • Number Of Speeds:
    4
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual / Automatic Clutch

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 20 x 7-8
  • Front Tire Diameter (in):
    20
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    8
  • Rear Tire (Full Spec):
    Maxxis® 19 x 8-8
  • Rear Tire Diameter (in):
    19
  • Rear Tire Width:
    8
  • Rear Wheel Diameter:
    8
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Aluminum
