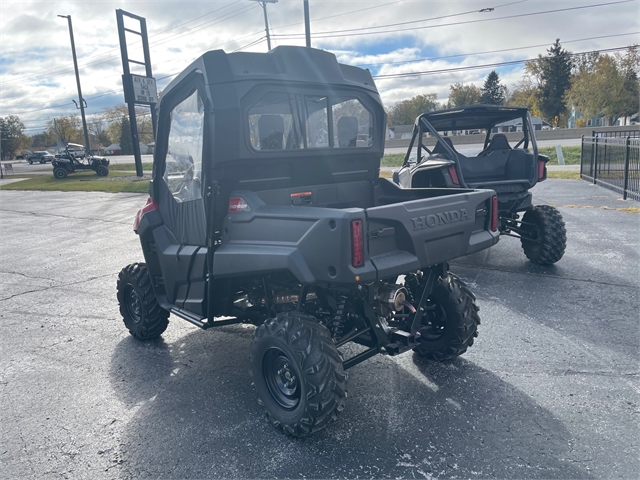

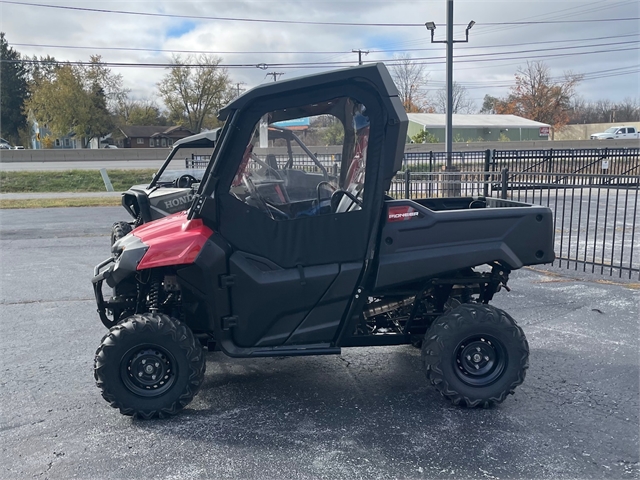

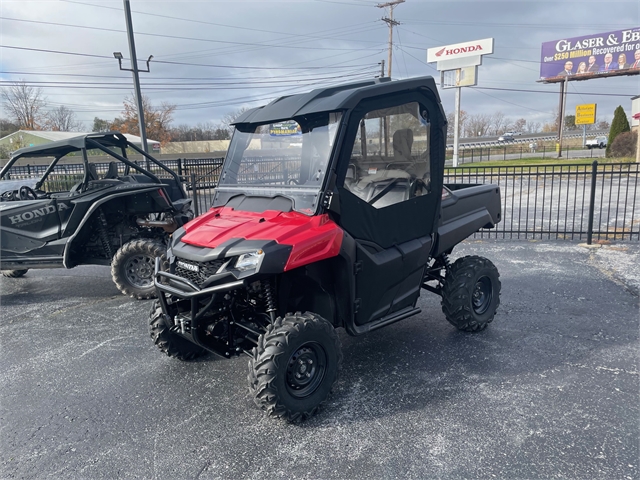

2025 Honda Pioneer 700

Cab, winch, & turn signals

Stock #H000652
Dealer Installed Accessories: $2,380
Your Price: $14,879 USD

180 people have recently viewed it.
Get More Info Hi, my name is and I'm interested in this 2025 Honda Pioneer 700 Base - Cab, winch, & turn signals . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2025 Honda Pioneer 700
  • VIN:
    1HFVE0292S4000652
  • Model Number:
    SXS700M2S
  • Color:
    Hero Red
  • Stock Number:
    H000652
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.9
  • Front Brake Diameter (mm):
    200
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    6.7
  • Rear Brake Diameter (mm):
    170
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front / Rear
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    4.02
  • Bore (mm):
    102
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.2
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    675
  • Displacement (ci):
    41.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    40
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.25
  • Stroke (mm):
    82.6
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Door Material:
    Hard
  • CV Boot Cover:
    Yes
  • Engine Case Guard:
    Yes
  • Frame:
    Steel
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Height (in):
    34.1
  • Seat Height (mm):
    866
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Rack & Pinion

STORAGE

  • Bed Capacity (kgs.):
    226.8
  • Bed Capacity (lbs.):
    1000
  • Cargo Bed Material:
    Polyethylene
  • Cargo Bed Tilt:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    7.9
  • Front Travel (mm):
    200.7
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    9.1
  • Rear Travel (mm):
    231.1

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    8.1
  • Fuel Capacity (l):
    30.7
  • Fuel Capacity Reserve (gal):
    1.5
  • Fuel Capacity Reserve (l):
    5.7
  • Ground Clearance (in):
    10.8
  • Ground Clearance (mm):
    274.3
  • Height (in):
    77.6
  • Height (mm):
    1971
  • Length (ft):
    9.57
  • Length (ft/ft):
    9
  • Length (ft/in):
    6.8
  • Length (in):
    114.8
  • Length (mm):
    2916
  • Towing Capacity (kgs):
    680.4
  • Towing Capacity (lbs):
    1500
  • Turning Radius (ft):
    14.8
  • Wet Weight (kg):
    586
  • Wet Weight (lbs):
    1292
  • Wheelbase (in):
    76.8
  • Wheelbase (mm):
    1950.7
  • Width (in):
    59.9
  • Width (mm):
    1521.5

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Number Of Speeds:
    3
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Automatic

WHEELS & TIRES

  • Front Tire (Full Spec):
    25 x 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Front Wheel Width (in):
    7
  • Rear Tire (Full Spec):
    25 x 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Rear Wheel Width (in):
    8
  • Wheels Composition:
    Steel
