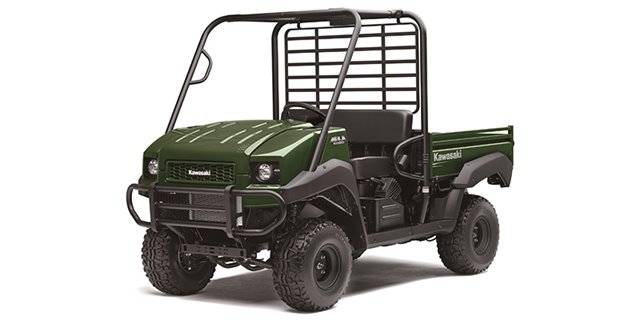

2025 Kawasaki Mule 4000

Stock #KD00028
MSRP: $10,899 USD
Get More Info Hi, my name is and I'm interested in this 2025 Kawasaki Mule 4000 . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2025 Kawasaki Mule 4000
  • VIN:
    JK1AFCP16STD00028
  • Model Number:
    KAF620PSFNN
  • Color:
    Timberline Green
  • Stock Number:
    KD00028
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Sealed Hydraulic Drum
  • Rear Brake Type:
    Sealed Hydraulic Drum

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    2.99
  • Bore (mm):
    76
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.3
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    617
  • Displacement (ci):
    37.6
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector Size (mm):
    34
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Speed Governor:
    Yes
  • Starter:
    Electric
  • Stroke (in):
    2.68
  • Stroke (mm):
    68
  • Torque (Ft Lbs):
    34.7
  • Torque (Nm):
    47
  • Torque RPM:
    2500
  • Valve Configuration:
    OHV
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Frame:
    Steel
  • Front Mud Guards:
    Yes
  • Radiator Guard:
    Yes
  • Rear Mud Guards:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Folding:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Rack & Pinion

STORAGE

  • Bed Capacity (kgs.):
    362.9
  • Bed Capacity (lbs.):
    800
  • Bed Height (in):
    11.4
  • Bed Height (mm):
    289.6
  • Bed Length (in):
    46.3
  • Bed Length (mm):
    1176
  • Bed Volume (ft3):
    15.6
  • Bed Volume (m3):
    0.44
  • Bed Width (in):
    51.6
  • Bed Width (mm):
    1310.6
  • Cargo Bed Material:
    Steel
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    2

SUSPENSION

  • Front Suspension Type:
    McPherson Strut
  • Front Travel (in):
    3.9
  • Front Travel (mm):
    99.1
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Type:
    De Dion Semi Independent
  • Rear Travel (in):
    2.8
  • Rear Travel (mm):
    71.1

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    6.3
  • Fuel Capacity (l):
    23.8
  • Ground Clearance (in):
    7.5
  • Ground Clearance (mm):
    190.5
  • Height (in):
    75.8
  • Height (mm):
    1925.3
  • Length (ft):
    9.72
  • Length (ft/ft):
    9
  • Length (ft/in):
    8.7
  • Length (in):
    116.7
  • Length (mm):
    2964.2
  • Payload Capacity (kgs):
    601.9
  • Payload Capacity (lbs):
    1327
  • Towing Capacity (kgs):
    544.3
  • Towing Capacity (lbs):
    1200
  • Turning Radius (ft):
    11
  • Wet Weight (kg):
    607.1
  • Wet Weight (lbs):
    1338.4
  • Wheelbase (in):
    73.6
  • Wheelbase (mm):
    1869.4
  • Width (in):
    62
  • Width (mm):
    1574.8

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro
  • Front Tire Diameter (in):
    23
  • Front Tire Width:
    11
  • Front Wheel Diameter:
    10
  • Rear Tire (Full Spec):
    Duro
  • Rear Tire Diameter (in):
    23
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    10
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
