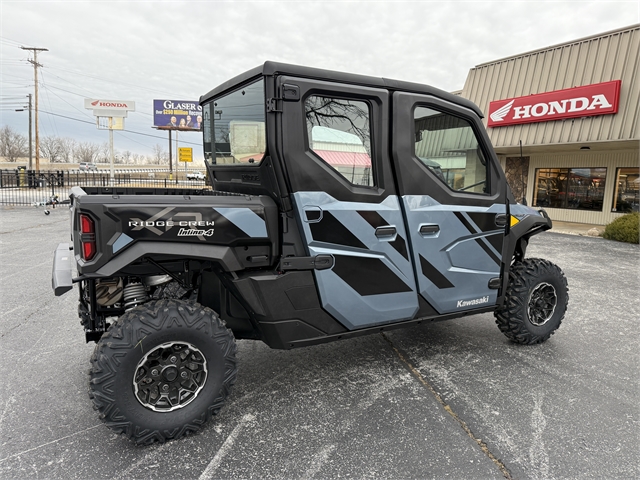

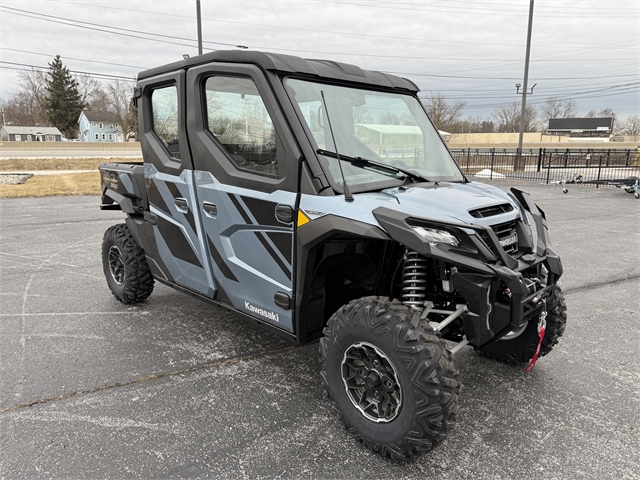

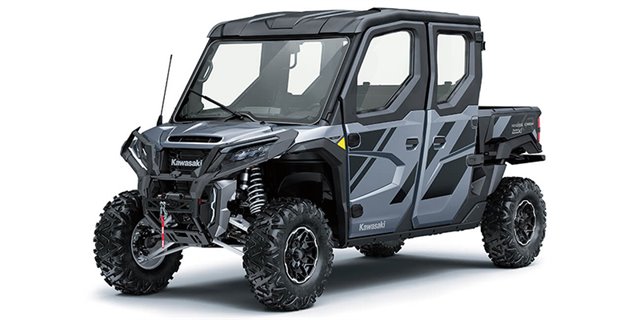

2025 Kawasaki RIDGE XR Crew Limited HVAC

Stock #K500273
MSRP: $38,099 USD

184 people have recently viewed it.
Get More Info Hi, my name is and I'm interested in this 2025 Kawasaki RIDGE XR Crew Limited HVAC . I'm in the area and you can reach me at or on my phone at . My preferred method of contact is:
  • Status:
    New
  • Vehicle:
    2025 Kawasaki RIDGE XR Crew Limited HVAC
  • VIN:
    JKAWTCF17SB500273
  • Model Number:
    KWT1000FSSNN
  • Color:
    Metallic Bluish Gray
  • Stock Number:
    K500273
  • Title:
    Clear
  • Location:
    Ehlerding Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes
  • Number Of Speakers:
    8

BRAKES

  • Front Brake Diameter (in):
    9.8
  • Front Brake Diameter (mm):
    249
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    9.8
  • Rear Brake Diameter (mm):
    249
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    2.89
  • Bore (mm):
    73.4
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.6
  • Cooling:
    Liquid
  • Cylinders:
    4
  • Displacement (cc):
    999
  • Displacement (ci):
    60.9
  • Engine Brand Name:
    Kawasaki
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    In-Line
  • Fuel Injector Size (mm):
    52
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    116
  • Horsepower (kW):
    86.6
  • Horsepower RPM:
    8500
  • Starter:
    Electric
  • Stroke (in):
    2.32
  • Stroke (mm):
    59
  • Torque (Ft Lbs):
    73.8
  • Torque (Nm):
    100.1
  • Torque RPM:
    8000
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    1
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • Camouflage:
    Yes
  • Frame:
    Steel
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • GPS Brand:
    Garmin®
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

PAINT & FINISH

  • Metallic:
    Yes

SEATS

  • Folding:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    5
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    453.6
  • Bed Capacity (lbs.):
    1000
  • Bed Height (in):
    12.8
  • Bed Height (mm):
    325
  • Bed Length (in):
    34.6
  • Bed Length (mm):
    879
  • Bed Width (in):
    49
  • Bed Width (mm):
    1244.6
  • Cargo Bed Material:
    Steel
  • Number Of Cupholders:
    4

SUSPENSION

  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    12.7
  • Front Travel (mm):
    322.6
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Type:
    Independent Double Wishbone
  • Rear Travel (in):
    12.7
  • Rear Travel (mm):
    322.6

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    1140
  • Dry Weight (lbs):
    2514
  • Fuel Capacity (gal):
    12.9
  • Fuel Capacity (l):
    48.8
  • Ground Clearance (in):
    13.4
  • Ground Clearance (mm):
    340.4
  • Height (in):
    82.3
  • Height (mm):
    2090
  • Length (ft):
    13.42
  • Length (ft/ft):
    13
  • Length (ft/in):
    5.1
  • Length (in):
    161.1
  • Length (mm):
    4092
  • Payload Capacity (kgs):
    585
  • Payload Capacity (lbs):
    1290
  • Towing Capacity (kgs):
    1134
  • Towing Capacity (lbs):
    2500
  • Turning Radius (ft):
    19
  • Wet Weight (kg):
    1190
  • Wet Weight (lbs):
    2624
  • Wheelbase (in):
    122.2
  • Wheelbase (mm):
    3104
  • Width (in):
    64
  • Width (mm):
    1625.6

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Tilt:
    Yes
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500
  • Winch Brand Name:
    Warn®

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro
  • Front Tire Diameter (in):
    30
  • Front Tire Width:
    10
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Duro
  • Rear Tire Diameter (in):
    30
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Duro
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel

Our Location

Ehlerding Motorsports
5525 State Road 930
Fort Wayne, IN 46803

(*) PRICE excludes $187 documentation fee, $269 assembly & prep cost, freight & destination costs - which vary by type and size of vehicle (Motorcycles from $305-$815, ATVs from $405-$760, UTV Side X Sides from $890-$1525 & PWCs @ $610), and applicable tax & title fees. Call for details.
